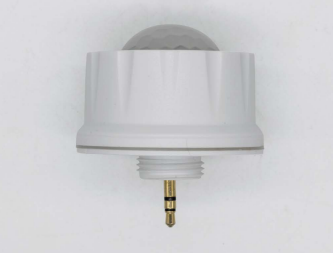

HD07VR-PHB-1 UL Certification PIR Sensor Bluetooth Controled With Dimmable Function

Brand Name : HAISEN

Model Number : HD07VR-PHB-1

Certification : UL FCC

Place of Origin : China

MOQ : 120pcs/ctn

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Control : Bluetooth or Remote

Function : Dimming

Items : Wireless Motion Sensor

Contact Now

HD07VR-PHB-1 UL certification PIR sensor controled by Bluetooth with dimmable function



Features

HD07VR-PHB-1 UL Certification PIR Sensor Bluetooth Controled With Dimmable Function


                      • 12VDC Smart PIR Sensor With Bluetooth Sigmesh

                    • PIR highbay sensor head, wireless version, APP control.

                    • Bi-level dimming, daylight threshold and dusk/dawn function.

                    • With UL certificate.











SENSOR PARAMETER

Detection Area

25%/50%/75%/100%

Holdtime

5s/30s/1min/2min/3min/5min/10min/15min/20min/25min/
30min/45min/60min/90min/120min

Daylight Threshold

Disable/2lux/10lux/30lux/50lux/80lux/120lux/
200Lux/250Lux/300lux/350Lux/400Lux

Standby Dimming Level

10%/20%/30%/50%

Standby Period

0s/5s/30s/1min/2min/3min/5min/10min/15min/20min/
25min/30min/ 45min/60min/+∞

Dusk/Dawn Sensing/ Photocell

Daylight threshold as 30Lux/50Lux/80Lux/120Lux/
200Lux/250Lux/300Lux/350Lux/400Lux
Standby period as +∞ ;
Standby dimming level as 10%/20%/30%

Default Program

Detection Area - 100%
Holdtime - 5S
Daylight Threshold - disable
Standby Period - 0S
Standby Dimming Level - 10%








































OTHER PARAMETER


INPUT
Input Range
12VDC
Voltage Range
10-15VDC
OUTPUT
Signal
DIM 0-10V
Stand-by Power
<30mA Power Consumption
ENVIRONMENT
Working Temp
20°C~+60°C
Storage Temp
-40℃~+80℃ Humidity: 85%(non-condensation)
CERTIFICATE & STANDARDS
Environmental Requirements
In accordance with CE ROHS
IP Rating
IP65
Installation Height
12m/39ft Max.

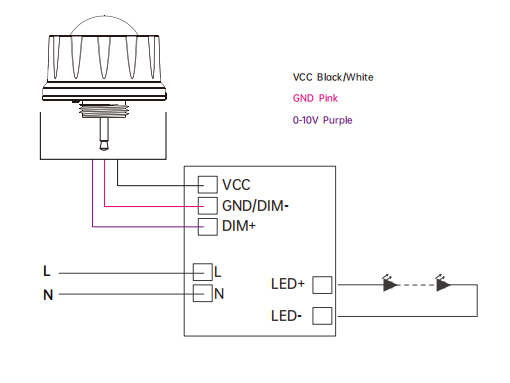

Wiring Diagram


HD07VR-PHB-1 UL Certification PIR Sensor Bluetooth Controled With Dimmable Function

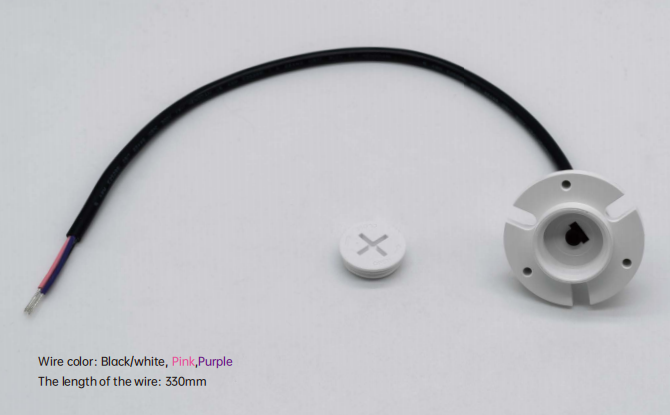

Receptacle

HD07VR-PHB-1 UL Certification PIR Sensor Bluetooth Controled With Dimmable Function
