HBP-001AL Bluetooth Controled PIR Sensor 12VDC Tiny Body With Bi-Level Dimmable Function

Brand Name : HAISEN

Model Number : HBP-001AL

Certification : RoHS CE

Place of Origin : China

MOQ : 120pcs/ctn

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Control : Bluetooth or Remote

Function : Dimming

Items : Wireless Motion Sensor

Contact Now

 HBP-001AL controled by Bluetooth PIR sensor 12VDC Tiny body with Bi-level dimmable function









Features

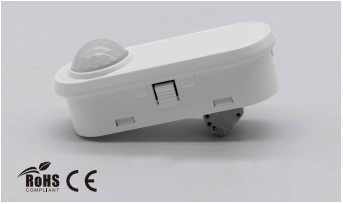

HBP-001AL Bluetooth Controled PIR Sensor 12VDC Tiny Body With Bi-Level Dimmable Function



                                • 12VDC Input



                             • Special Design With Tiny Sensor Body



                             • Bi-level Dimmable, ON/OFF



                             • Suitable for troffer indoor lighting fixtures



                             • Remote Control Programmig









SENSOR PARAMETER

Detection Area

25%/50%/75%/100%


Holdtime




Daylight Threshold




Standby Dimming Level




Standby Period




Dimming Play




Detection Angle



With Fresnel Lens ≤120° Wall Mounted；360 °Ceiling Mounted

Programming

Bluetooth APP























































OTHER PARAMETER



INPUT
Input Voltage
10.5-15V DC
Current
＜15mA
OUTPUT
Control
DIM 0-10V
Quick Connector
+12V,GND,DIM+
Stand-by power
＜0.5W
ENVIRONMENT
Operating Temperature
20℃~+60℃
CERTIFICATE & STANDARDS
Environmental Requirements
In accordance with CE ROHS
IP Rating
IP20

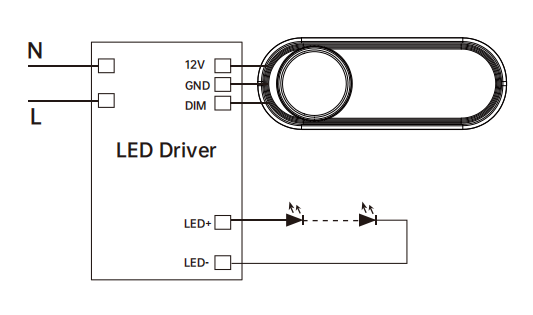

Wiring Diagram
HBP-001AL Bluetooth Controled PIR Sensor 12VDC Tiny Body With Bi-Level Dimmable Function





HBP-001AL.pdf
