325VA Transformer-A Type Emergency Converter For Field Installation

Brand Name : HAISEN

Model Number : ES-TB325-02

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : Black

Products : LED Emergency Driver

INPUT VOLTAGE : 480Vac±10% / 347Vac ±10% / 277Vac ±10%

OUTPUT VOLTAGE : 208Vac @ 480Vac / 150Vac @ 347Vac / 120Vac @ 277Vac

Safety standard : UL 5085-3 listed,for feild installation

Warranty : 5 years warranty

Contact Now

325VA Transformer-A Type Emergency Converter For Feild Installation

Description

  • 325VA Transformer-A Type
  • INPUT VOLTAGE: 480Vac±10% / 347Vac ±10% / 277Vac ±10%
  • OUTPUT VOLTAGE: 208Vac @ 480Vac / 150Vac @ 347Vac / 120Vac @ 277Vac
  • Safety standard:UL 5085-3 listed,for feild installation
  • Warranty:5 years warranty


ELECTRICAL SPECIFICATIONS

Parameter
Symbol
Conditions
USA
CA
USA

Input Voltage
V Input
   480 347 277 V
Output Voltage
V Output
Infliction Rated Voltage
 208 150 120 V
Input Current
A Input
Infliction Rated Voltage
 0.75 A
Output Current
A Output
Infliction Rated Voltage
 1.56 A
Output Watts
VA Output
Infliction Rated Voltage
 325 240 185 VA
Power Factor
PF
Nominal
 0.96
THD(Primary Lamp Type)

Infliction Rated Voltage
     10 %
2nd Harmonic

Rated Voltage / Frequency
     2 %
3nd Harmonic

Rated Voltage / Frequency
     30 %
5nd Harmonic

Rated Voltage / Frequency
     10 %
7nd Harmonic

Rated Voltage / Frequency
     7 %
9nd Harmonic

Rated Voltage / Frequency
     5 %
Temperature Rise Of Ballast Winding

Rated Voltage / Frequency
     55 K
Max Casing Temperature

Faulty Status
     105 C
14AWG Lead Lengths
     200 210 220 MM



*EMI Shall Comply To GB17625-1-2003 ** Current power factory

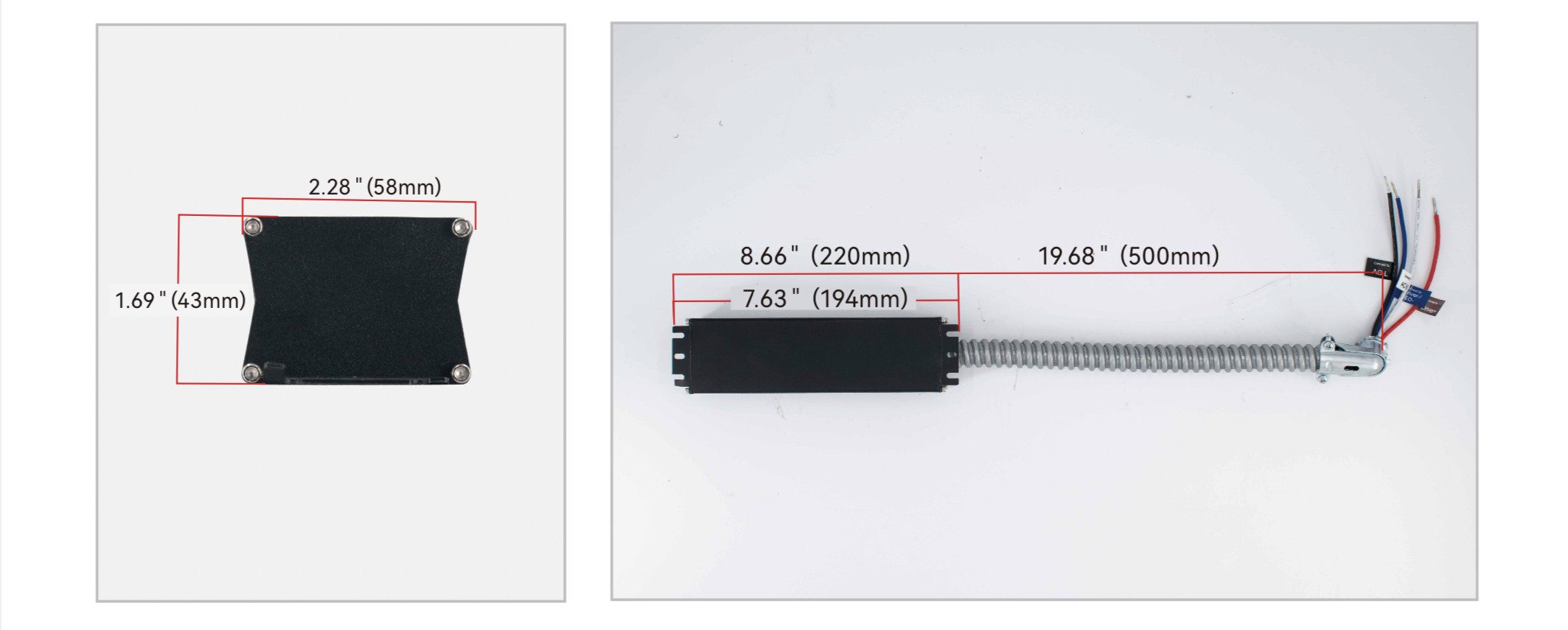

DIMENSION

325VA Transformer-A Type Emergency Converter For Field Installation



TRANSFORMER COVER BOX

♦Attach transformer to cover box.

♦Make wiring connections.

♦Attach transformer cover box assembly to luminaire driver enclosure.



TRANSFORMER BRACKET FOR PANELS

♦Attach transformer to bracket.

♦Attach transformer bracket to panel.

♦Make wiring connections.



ES-TB325-02.pdf
