Name: Field Installation Emergency Converter 325VA TransformerA Type
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : ES-TB325-01

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : light yellow

Products : LED Emergency Driver

Battery : Lithium

Input voltage : 100-347VAC,50/60Hz

OUTPUT VOLTAGE : 208Vac @ 480Vac / 150Vac @ 347Vac / 120Vac @ 277Vac

Warranty : 5 years warranty

Contact Now

325VA Transformer-A Type Emergency Converter For Feild Installation

Description

ELECTRICAL SPECIFICATIONS

Parameter	Symbol	Conditions	USA	CA	USA
Input Voltage	V Input		480	347	277	V
Output Voltage	V Output	Infliction Rated Voltage	208	150	120	V
Input Current	A Input	Infliction Rated Voltage	0.75			A
Output Current	A Output	Infliction Rated Voltage	1.56			A
Output Watts	VA Output	Infliction Rated Voltage	325	240	185	VA
Power Factor	PF	Nominal	0.96
THD(Primary Lamp Type)		Infliction Rated Voltage			10	%
2nd Harmonic		Rated Voltage / Frequency			2	%
3nd Harmonic		Rated Voltage / Frequency			30	%
5nd Harmonic		Rated Voltage / Frequency			10	%
7nd Harmonic		Rated Voltage / Frequency			7	%
9nd Harmonic		Rated Voltage / Frequency			5	%
Temperature Rise Of Ballast Winding		Rated Voltage / Frequency			55	K
Max Casing Temperature		Faulty Status			105	C
14AWG Lead Lengths			200	210	220	MM

*EMI Shall Comply To GB17625-1-2003 ** Current power factory

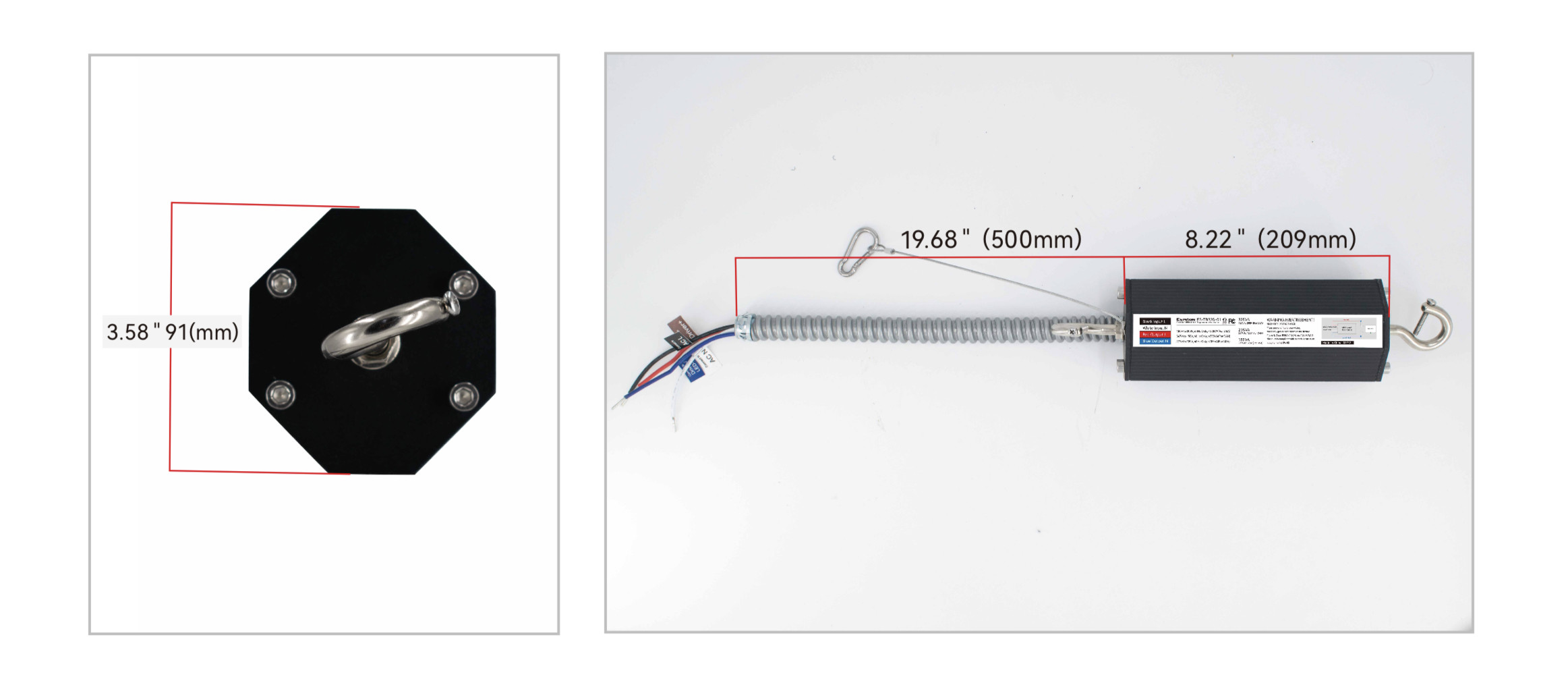

DIMENSION

Field Installation Emergency Converter 325VA Transformer-A Type

INSTALLING & WIRING

Turn off the AC power before installing

Assembling the transformer with the Safety Rope with the chain link connector

Select the appropriate wiring diagram to connect the transformer to the AC driver.
